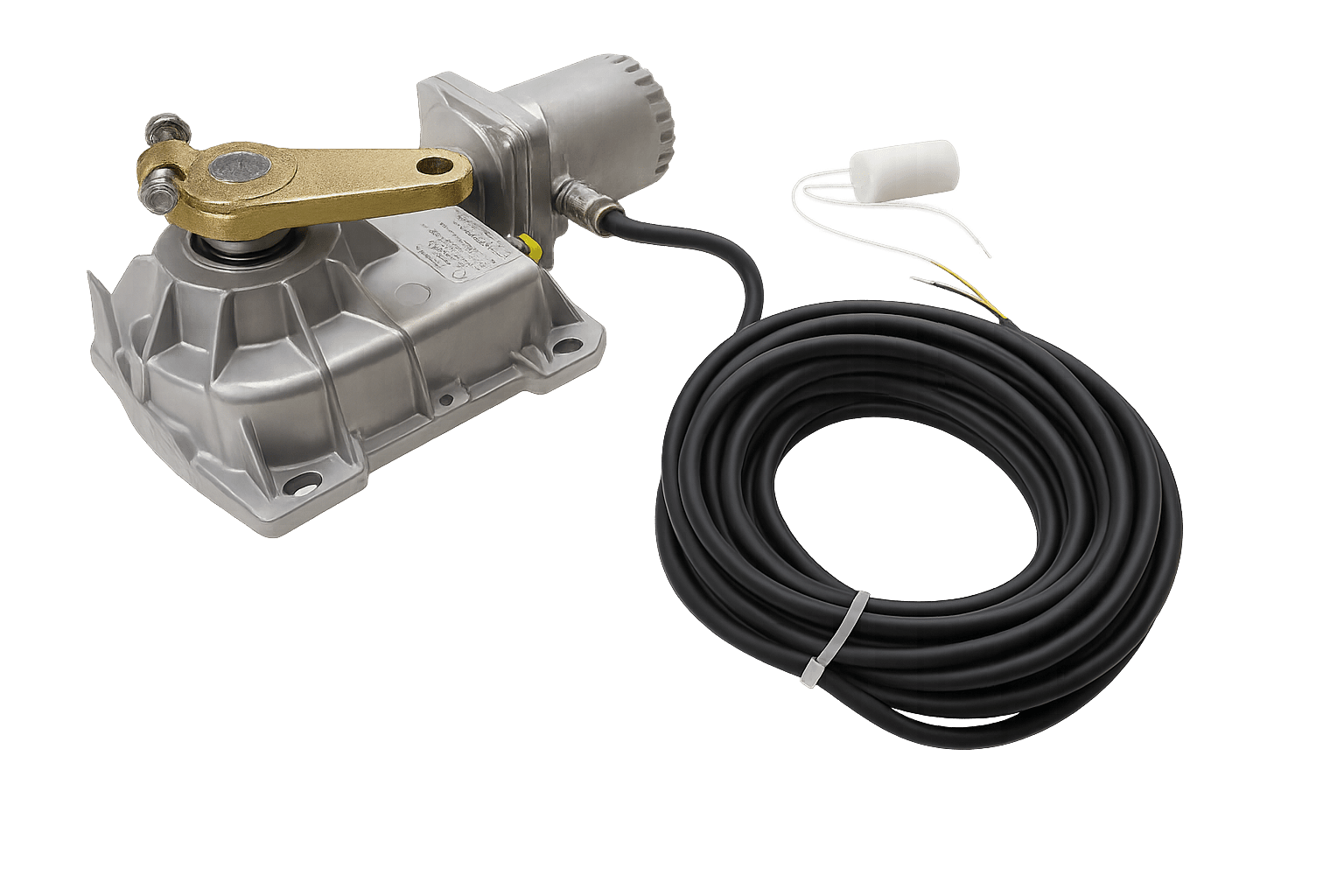

ABLE V2 22Y013 230V Underground swing gate motor up to 3.5m
ABLE V2

ABLE V2 22Y013 230V Underground swing gate motor up to 3.5m

Product ID: 22Y013

ABLE V2 Underground 230v swing gate, irreversible electromechanical gear motor. Each gate leaf maximum if up to 3.5 m in length.

View more
Buy Now, Pay Later for businesses
Eligible UK businesses can spread the cost of this item over 3 months and pay just £113.33 per month with iwocaPay.

Learn more about Iwoca here…

£340.00

ex. VAT

+ Add to FavouritesAlready added to List
+ Add to Favourites
Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Rated 4.8/5 on Google

Based on over 250 reviews

Quality Service & Experience

40 years experience in the industry

Trusted Trade Supplier

For over 22 years

Become a Trade Customer

To receive our best prices on thousands of automation, access control and safety products.

Register Now

Additional Information

The ABLE V2 Underground automation motor allows a swing gate leaf to open up to 110° with the levers supplied.

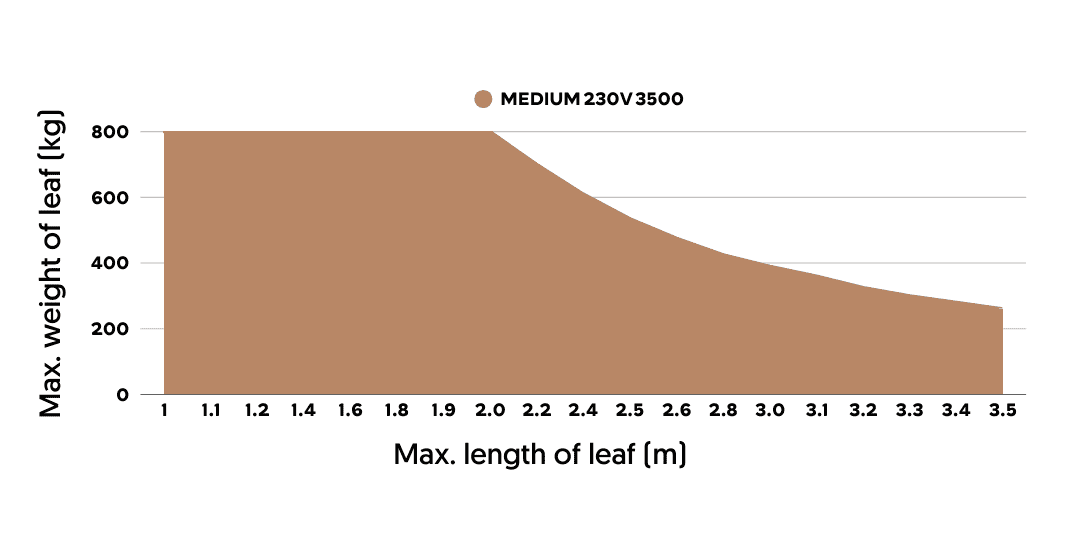

The gate leaf’s maximum length is 2.5 metres and its maximum weight is 400 kg if the accessory device for opening up to 180 degrees (code 162218) is installed.

Specification

TECHNICAL DATA

Weight (kg) : 11
Maximum gate weight (kg) : 800
Degree of protection (IP) : 67
Operating Temperature (°C) : -20 +55
Supply (Vac – Hz) : 230 – 50
Full load absorption (A) : 2.4
Maximum electric power (W) : 550
Consumption standby : <0.5
Operating time of the leaf 0-90° (s) : 17
Maximum torque (N) : 320
Working cycle (cycles/hour) : 32

Manuals

ABLE V2 29Y016 Motor Manual
