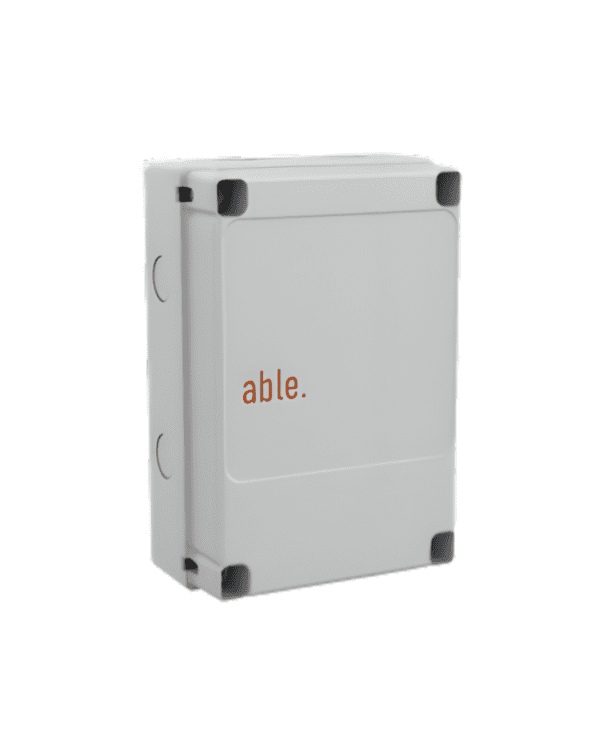

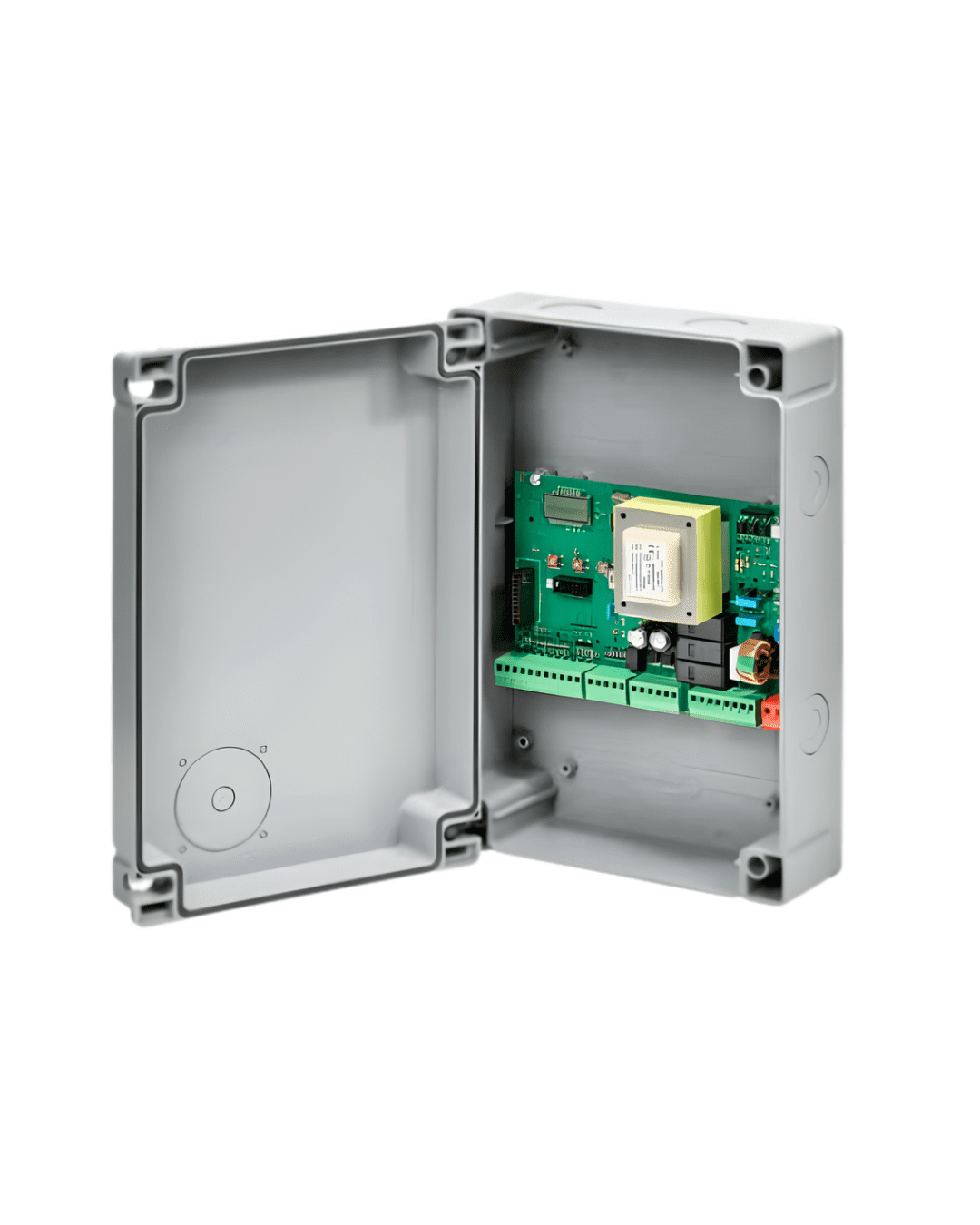

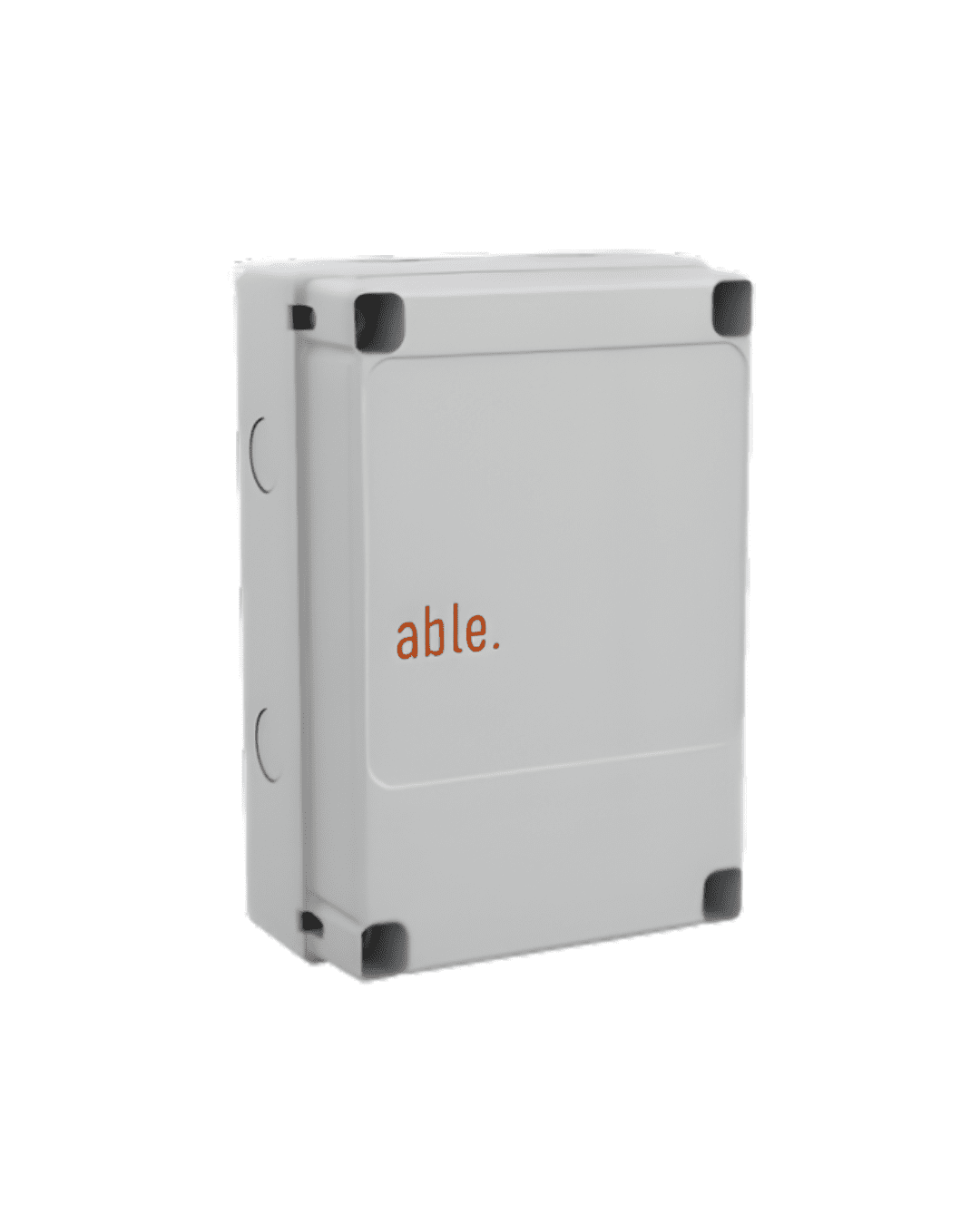

ABLE V2 12Y001 230V EVO1 Control panel and enclosure

CX EVO1 is manufactured with a digital display that not only makes programming simple but also allows continuous monitoring of the input statuses such as safety; in addition, thanks to a menu structure, the working schedule and the operation logic can be set easily.

• Automatic control for the null current relay switch
• Power adjustment with independent wave shutting on both the two swing gate motors
• Obstacle detection by means of monitoring start condenser voltage
• Automatic learning of the operation time for gate positions
• Operation by means of mechanical ends of stroke connected to the gearcase or connected in series to the motor
• Tests for safety devices (photocells and safety edges) before each opening as required by the referred regulations
• Deactivation of safety inputs through the configuration menu: no jumper is required for terminals concerning safety devices that have not been installed yet. You will only need to disable this function from its relevant menu
• Control unit programming can be locked through the optional CL512K key
• ADI connector for the advanced management of the ADI devices.
• USB connector to connect the control unit to a PC and manage through software the programming of the unit, the firmware updates and the operation diagnostics.
• Connector for the LOW ENERGY module that allows saving electrical energy: when the gate is standing the LOW ENERGY module deactivates the display, the photocells and all the devices power supplied by a terminal box.
To activate the operation of the module, it is necessary to activate the ENERGY SAVING function (parameter EnSA =Si)
