Nice Robuskit 1 24v sliding gate kit for gates up to 600kg

Product Code: ROBUSKIT1

THIS KIT DOES NOT INCLUDE DRIVE RACK

This is an easy to install sliding gate kit which is suitable for gates up to 600kg in weight.

It is a quiet and very reliable sliding gate kit which can be fitted without professional assistance.

The RobusKit 1 is suitable for light residential gates.

It is adaptable to climatic conditions and has adjustable acceleration and deceleration at opening and closing.

View more
inc VAT

Related Products (4)

inc VAT

ADDITIONAL INFORMATION

User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of 7 couples of photocells from the MoonBus series using two wires only.

Self closing: can be programmed to self close.

Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.

Advanced: Robuskit 1 & 3 are equipped with a temperature sensor which adapts the motor power to the climatic conditions and at the same time the thermal cut-out. A master/slave selection automatically synchronises 2 motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.

Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.

Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.

Sturdy: base and release in pressure die cast with easy to open handle.

Very quiet: gear motor on bearings.

SPECIFICATION

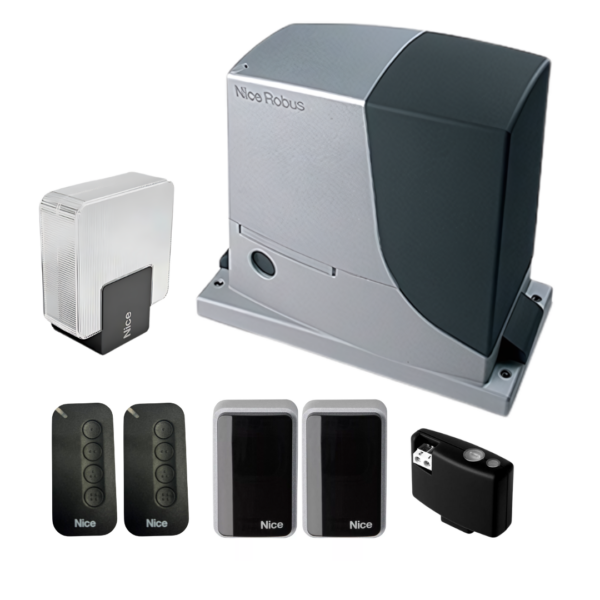

Kit contains:

  • 1 x RB600 24 vdc 600kg or 1 x RB1000 24 vdc 1000kg irreversible electro-mechanical motor with built in control panel
  • 2 x ON2E 2 Channel Transmitters
  • 1 x Pair of EMPB Photocells
  • 1 x OXI 4 Channel Receiver

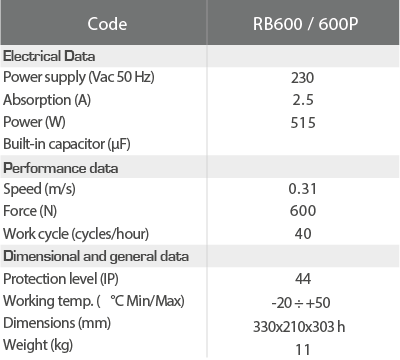

Robuskit 1
(RB600/600p)
Electrical Data
Power Supply (Vac 50Hz)230
Absorption (A)2.5
Power (W)515
Built in Capacitator (uF)
Performance Data
Speed (m/s)0.31
Force (N)600
Work Cycle (cycles/hour)40
Dimensional and General Data
Protection Level (IP)44
Working temp (deg C Min / Max)-20° ÷ +50°
Dimensions (mm)330 x 210 x 303 h
Weight (kg)11

This kit contains:

  • 1 x RB600

    24 vdc 600kg irreversible electro-mechanical motor with built in control panel

  • 2 x ON2E

    2 Channel Transmitters

  • 1 x Pair

    EMPB Photocells

  • 1 x OXI

    4 Channel Receiver
