Mini Kit 1 for gates up to 6m opening and 450kg in weight (1x6m)

Product Code: MINIKIT1

For gates up to 6m clear opening and up to 450kg in weight.
Supplied with 1 x 6m galvanised track.

View more
inc VAT

Related Products (3)

inc VAT

ADDITIONAL INFORMATION

Cantilever kit for clear gate openings up to 6m and up to 450kg in weight.
Cantilever gate systems are widely used in commercial, public sector and residential environments due to the many benefits that they offer over the traditional sliding gate such as: * No requirement to lay track in the ground. * Minimal ground work required * Lower cost of labour
* Less maintenance
* Suitable for intensive use * Aesthetically pleasing System capable of carrying cantilevered gates up to 4m clear opening / 450kg max gate weight.

SPECIFICATION

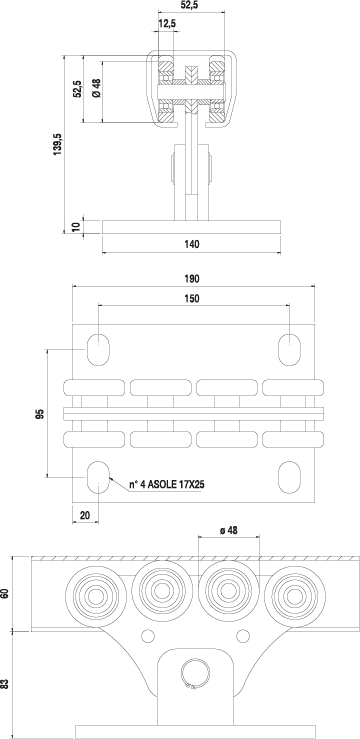

Mini Carriage DrawingMini Carriage TableMini Meeting Point DrawingMini Meeting Point TableMini Support Wheel DrawinMini Support Wheel TableMini Track DrawingMini Track Table

MANUALS

Sorry, there are no manuals available for this product.

This kit contains:

  • 1 x 6m GIPI 4 RPZ6 Galvanised Track.

    S280GD structural grade steel

  • 2 x CA4RPS Mini 8 wheeled cantilever carriages.

    S235 structural grade steel body with C45 case-hardened carbon steel bearings.

  • 2 x 41B/S Mini support wheels with plate.

    S235 structural grade steel body and case-hardened C45 carbon steel roller bearing, galvanised finish.

  • 2 x 50B Meeting Points

    235 structural grade steel, galvanised finish.
