Magnumkit1 3 4

Magnum Kit 1 for gates up to 16m opening and 1200kg in weight (2x6m)

Product Code: MAGNUMKIT1

For gates up to 16m clear opening and up to 1200kg in weight.

Supplied with 2 x 6m galvanised track.

View more
inc VAT

Related Products (3)

inc VAT

ADDITIONAL INFORMATION

Cantilever gate systems are designed for applications where sliding gates are required but the installation of a ground track is neither possible nor desirable. Cantilever gate systems are often chosen for industrial or commercial installations due to the robustness of the cantilever mechanism which provides a high degree of security although they work just as well on residential gates. Some of the advantages they offer are:
* No track required * No ground work needed
* Limited maintenance
* Ideal for intensive use * Aesthetically pleasing. System capable of carrying cantilevered gates up to 16m clear opening / 1200kg max gate weight.

SPECIFICATION

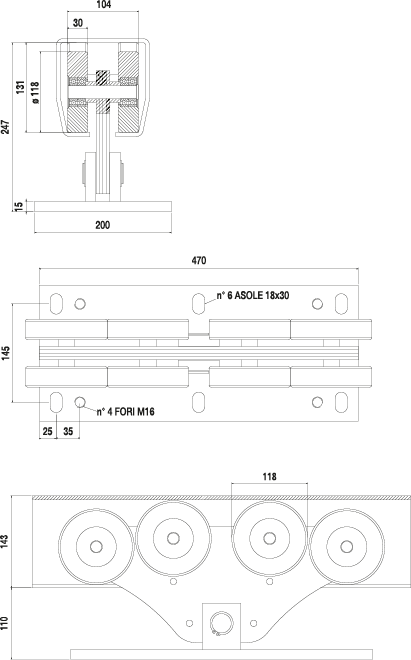

Magnum Carriage DrawingMagnum Carriage TableMagnum Meeting Point DrawingMagnum Meeting Point TableMagnum Support Wheel DrawinMagnum Support Wheel TableMagnum Track DrawingMagnum Track Table

MANUALS

Sorry, there are no manuals available for this product.

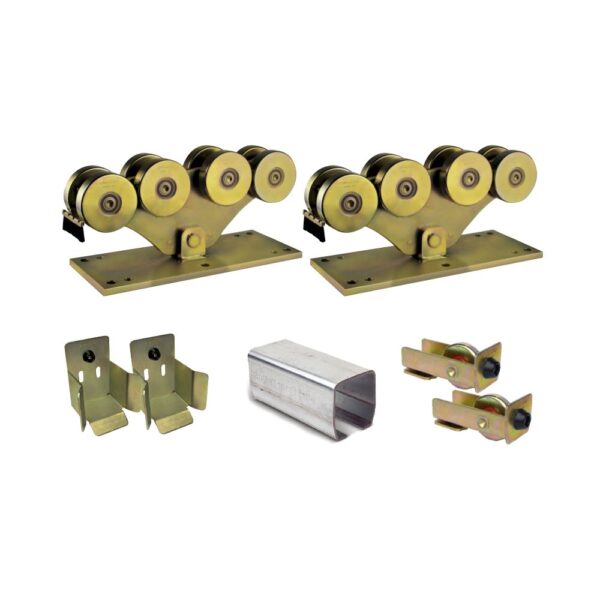

This kit contains:

  • 2 x 6m GIPI 6RMZ6 Magnum Zinc Galvanised Track.
  • 2 x CA4RMS 8 wheeled Magnum Cantilever Carriages
  • 2 x 41G/S Magnum Cantilever support wheels with plates and rubber stops
  • 2 x 50G Magnum Meeting Points.

OPTIONAL ACCESSORIES

Dima fixing template
Dima fixing template
inc. VAT
GLOECK cantilever gate tension bar
GLOECK cantilever gate tension bar
inc. VAT
PF/G magnum cantilever carriage fixing kit
PF/G magnum cantilever carriage fixing kit
inc. VAT
