Locinox Interio-ground fixing kit

Product Code: INTERIO-GROUND

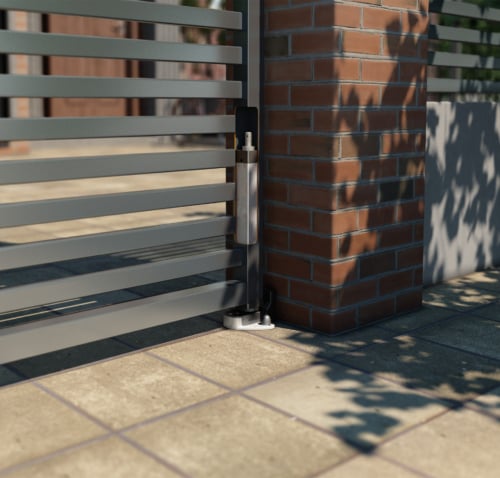

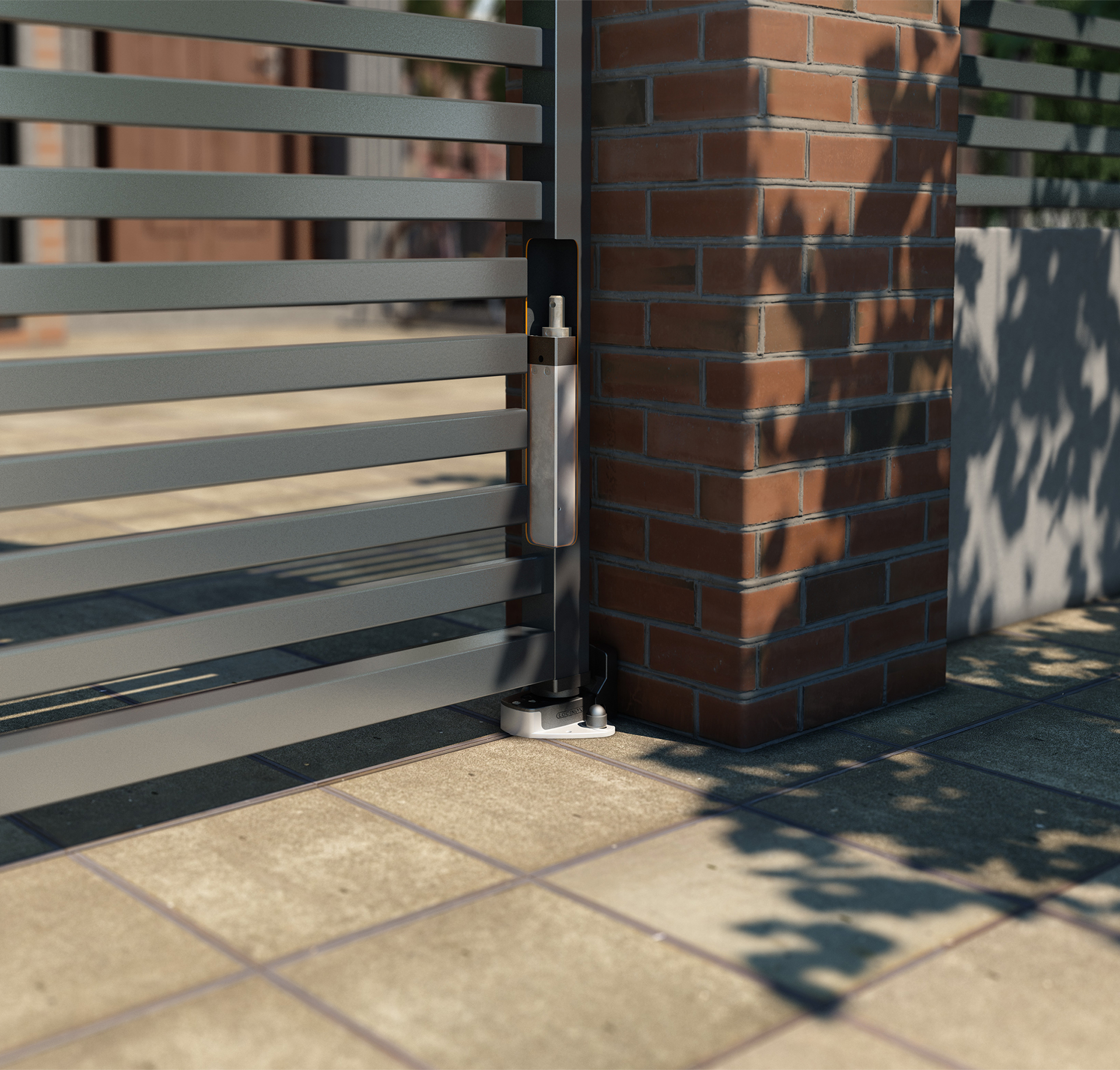

Optional set to fix the Interio gate closer directly on the ground.

(requires Locinox Interio)

View more
inc VAT

ADDITIONAL INFORMATION

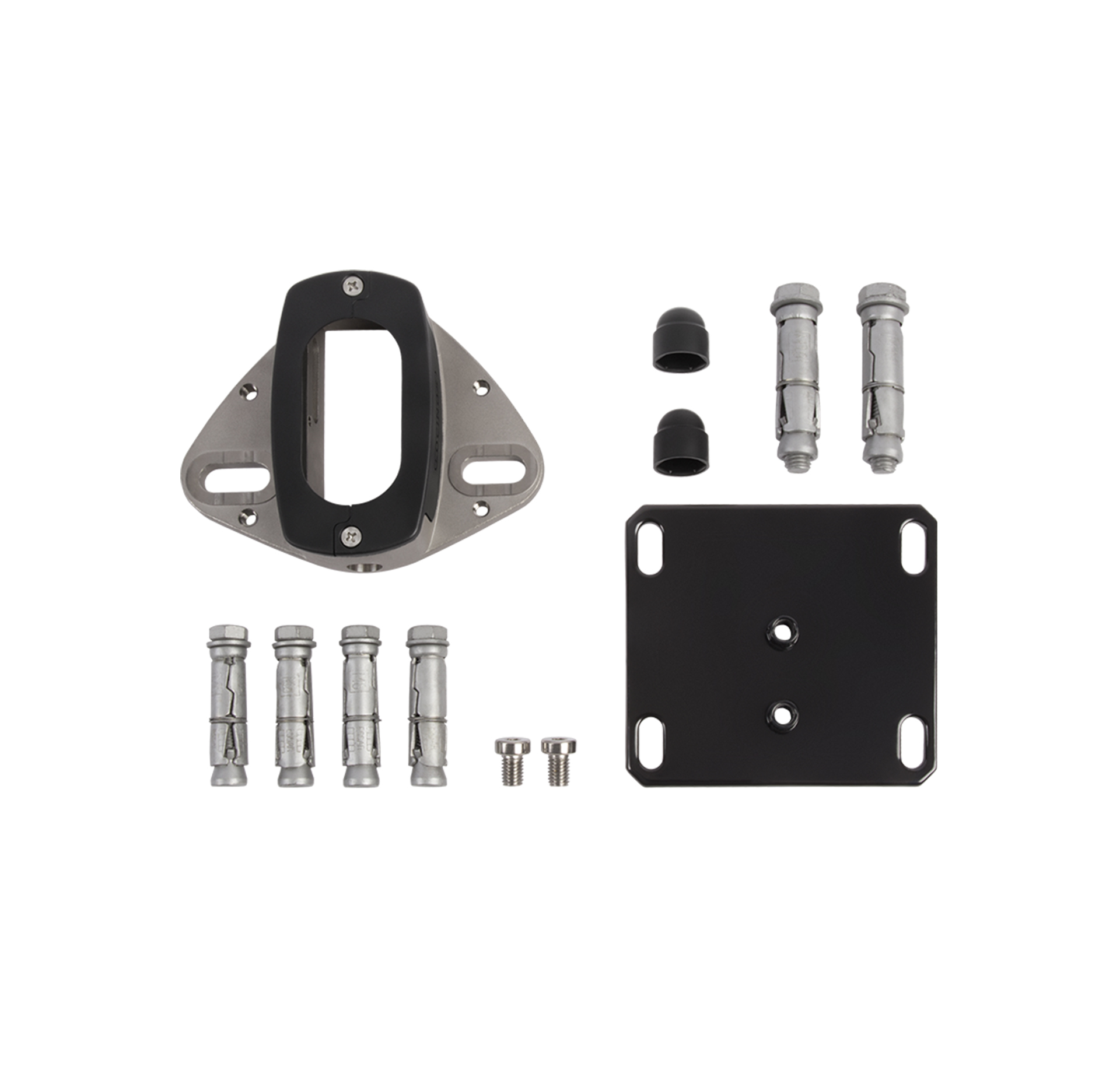

This set consists of a ground hinge and a wall panel. Including all fixations.

  • Wall plate made of hot-dip galvanized metal with RAL9005 powder coating
  • Bottom hinge fixation block made of aluminium
  • Anchor bolts included

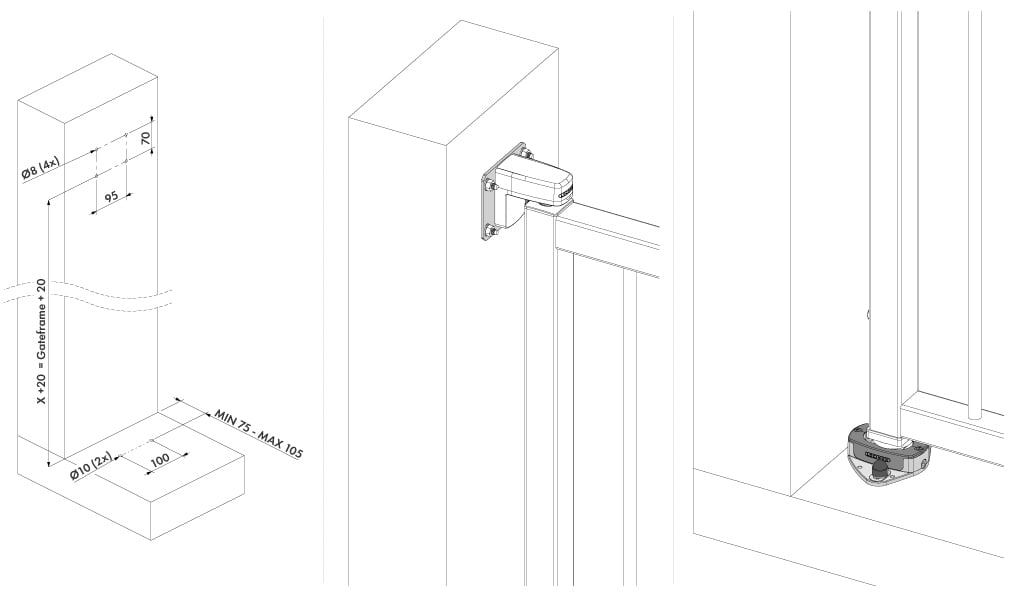

  • Distance between gate and wall: min. 29 mm - max. 54 mm
  • Depth adjustment: 15 mm
  • Height adjustment: 10 mm
  • Minimal opening under the gate: 22,5 mm
  • Only compatible with Interio gate closer

(requires Locinox Interio)

SPECIFICATION

This kit contains:
