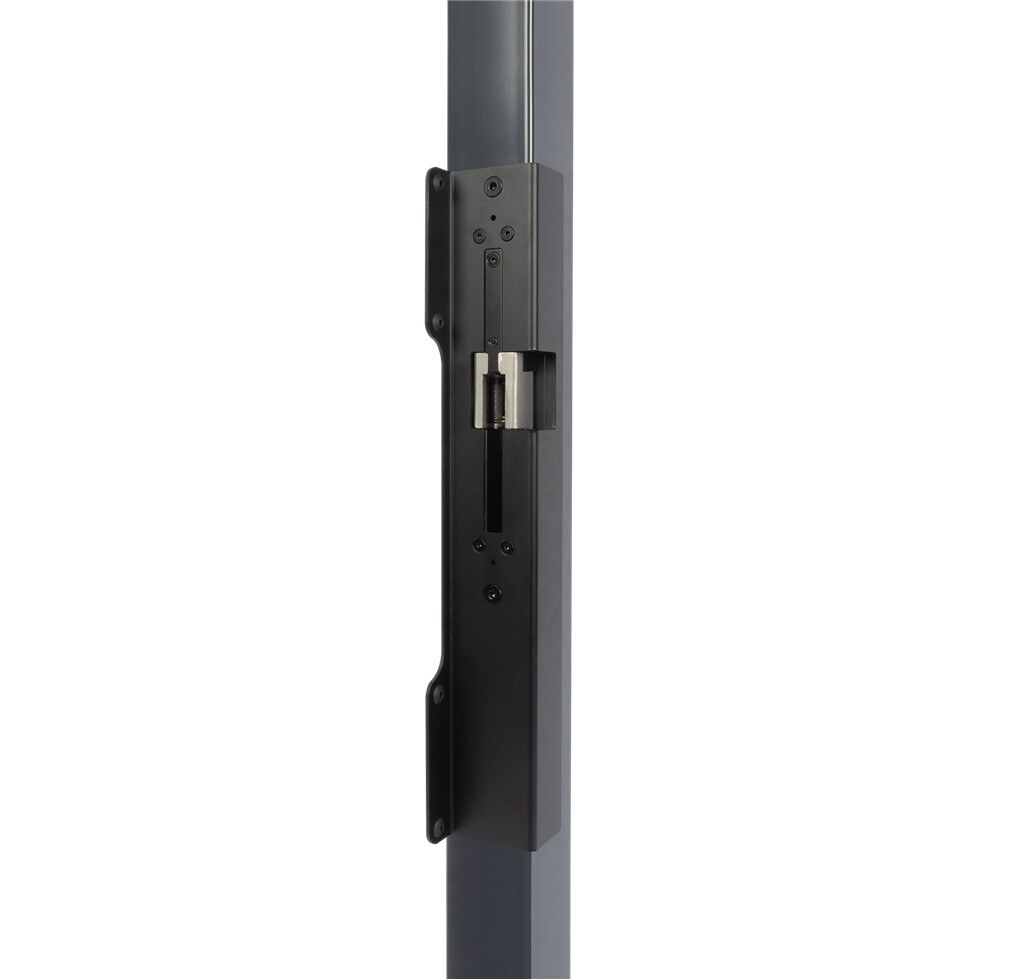

Intralec with plate

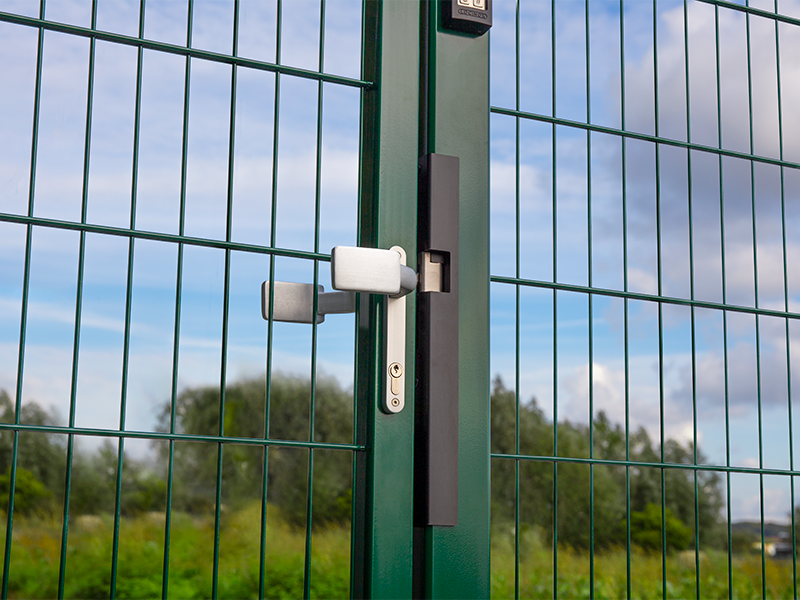

INTRALEC 3006 FIX At Locinox 800x600px

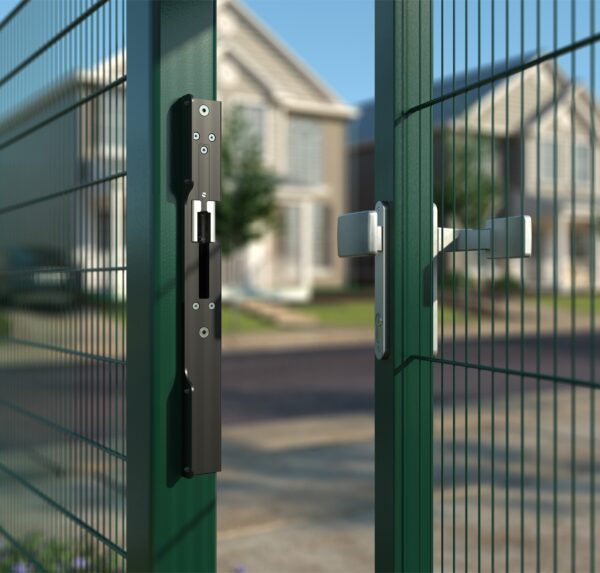

INTRALEC Render 1920px

Locinox INTRALEC Built in electric keep with strike plate for 40mm Fail Open

Product Code: INTRALEC-C-40-9005-R

The discreet Locinox electric keep is built into the gate post for a 40mm box section. Using the Click-It system to ensure an easy and simple installation.

This version is Fail Secure, to ensure the gate will not open in case of power cut or failure and supplied with a strike plate

View more
inc VAT

Related Products (3)

Locinox INTRALEC Built in electric keep with strike plate for 50mm Fail Open

Locinox INTRALEC Built in electric keep with strike plate for 50mm Fail Open

Product Code: INTRALEC-C-50-9005-R
inc VAT
View More

ADDITIONAL INFORMATION

Available in both Fail safe and Fail secure versions.

Can be fitted alongside the Locinox Fortyset, Fiftyset and Sixtyset but must have 3006FIX Handle

  • Tested up to 500.000 movements
  • Fast and easy fixing with Click-it
  • Resistance to pressure on the latch bolt: 300 kg
  • Deep closure of 17,5 mm of the latch bolt
  • Easy left or right changing
  • Corrosion-resistant: black anodized aluminium housing
  • Available for profiles with 40 mm and 50 mm depth
  • Voltage: 12V-24V AC/DC
  • Consumption: 10W / 12V - 0.8A / 24V - 0.4A

SPECIFICATION

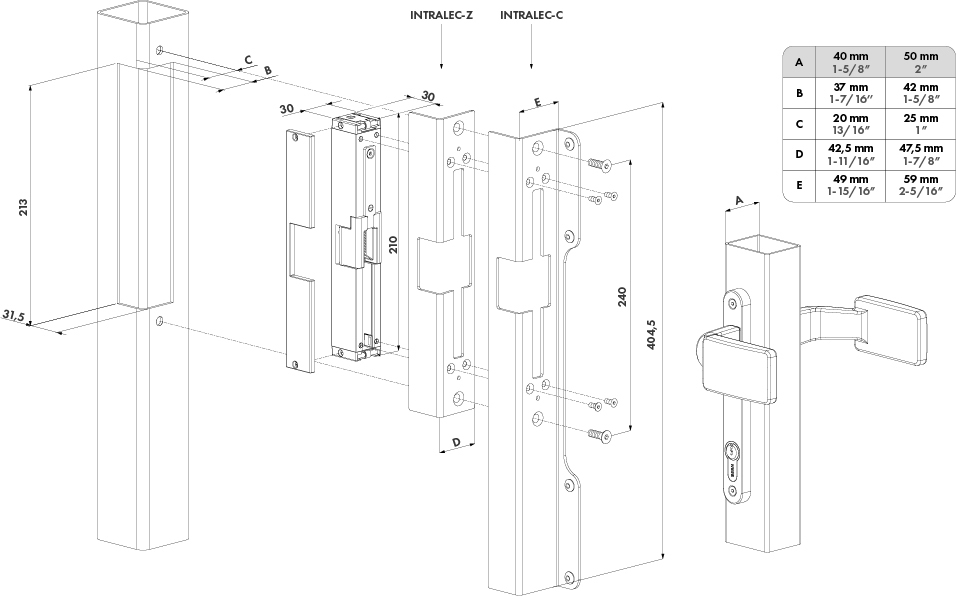

INTRALEC Dimensions 1017x600px
