Gl200

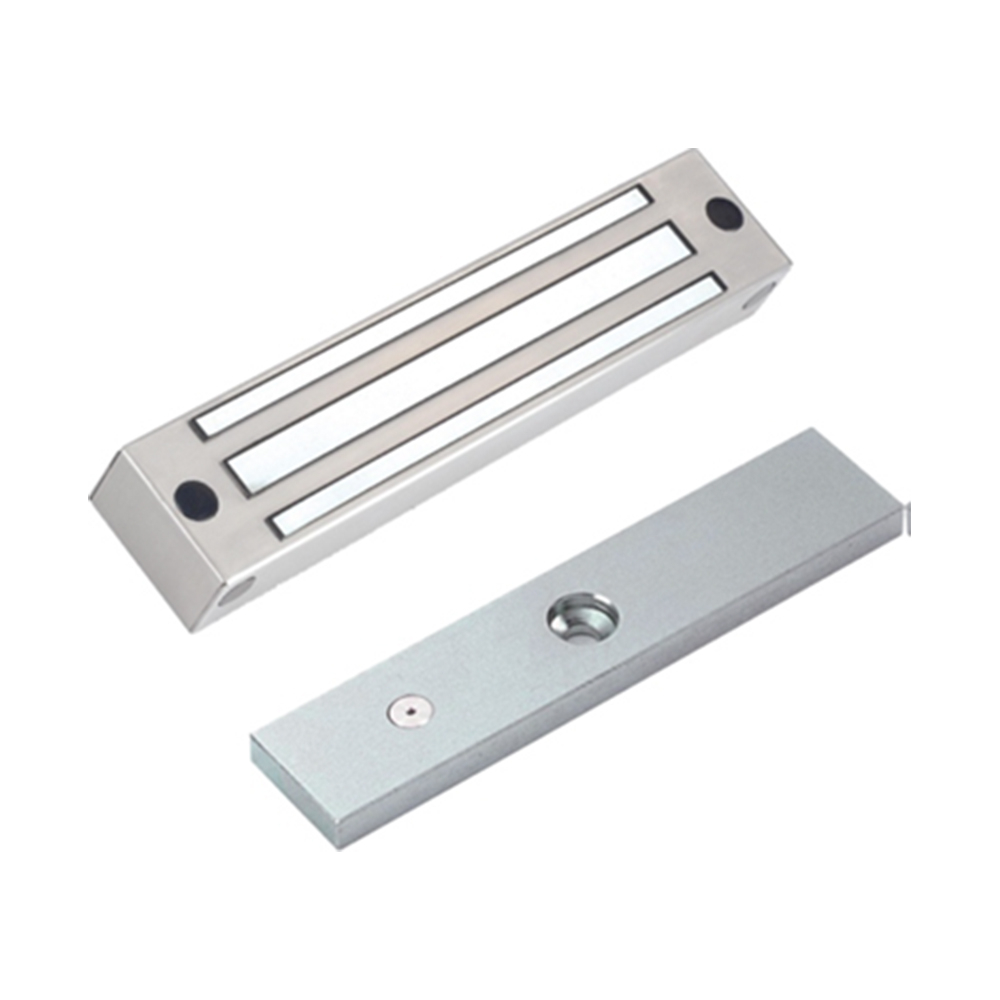

GL200 Magnetic lock 250kg holding force 12/24v

Product Code: GL200

Medium Maglock

View more
inc VAT

ADDITIONAL INFORMATION

  • Power supply: DC 12V or DC 24V
  • Current: 460mA @ 12V or 220mA @ 24V。
  • Holding force: GL-200/GL-200P:250kg (600lbs)/ GL-220:544kg(1200lbs)
  • Fail safe type. Stainless steel case suitable for outdoors.
  • Door position detection output to detect if it is locked correctly.
  • Automatic demagnetizer function.
  • High efficiency with low consumption of power.
  • Optional bracket available to install.
  • Operation temperature: -10~70℃; Humidity: 85%Rh max.

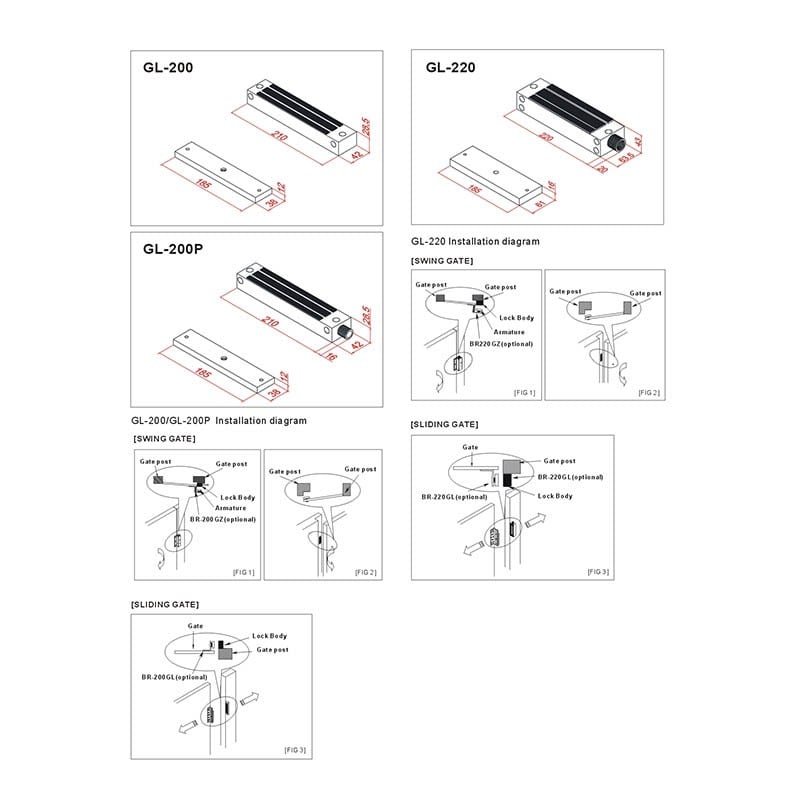

  • Dimensions: Lock Body: GL-200:210(L) x 42(W) x 28.5(D) mm Armature: GL-200:185(L) x 38(W) x 12(D) mm
  • Weight:GL-200 2300g / GL-200P 2300g / GL-220 4900g
  • Certification: CE

SPECIFICATION

This kit contains:
