Dg500

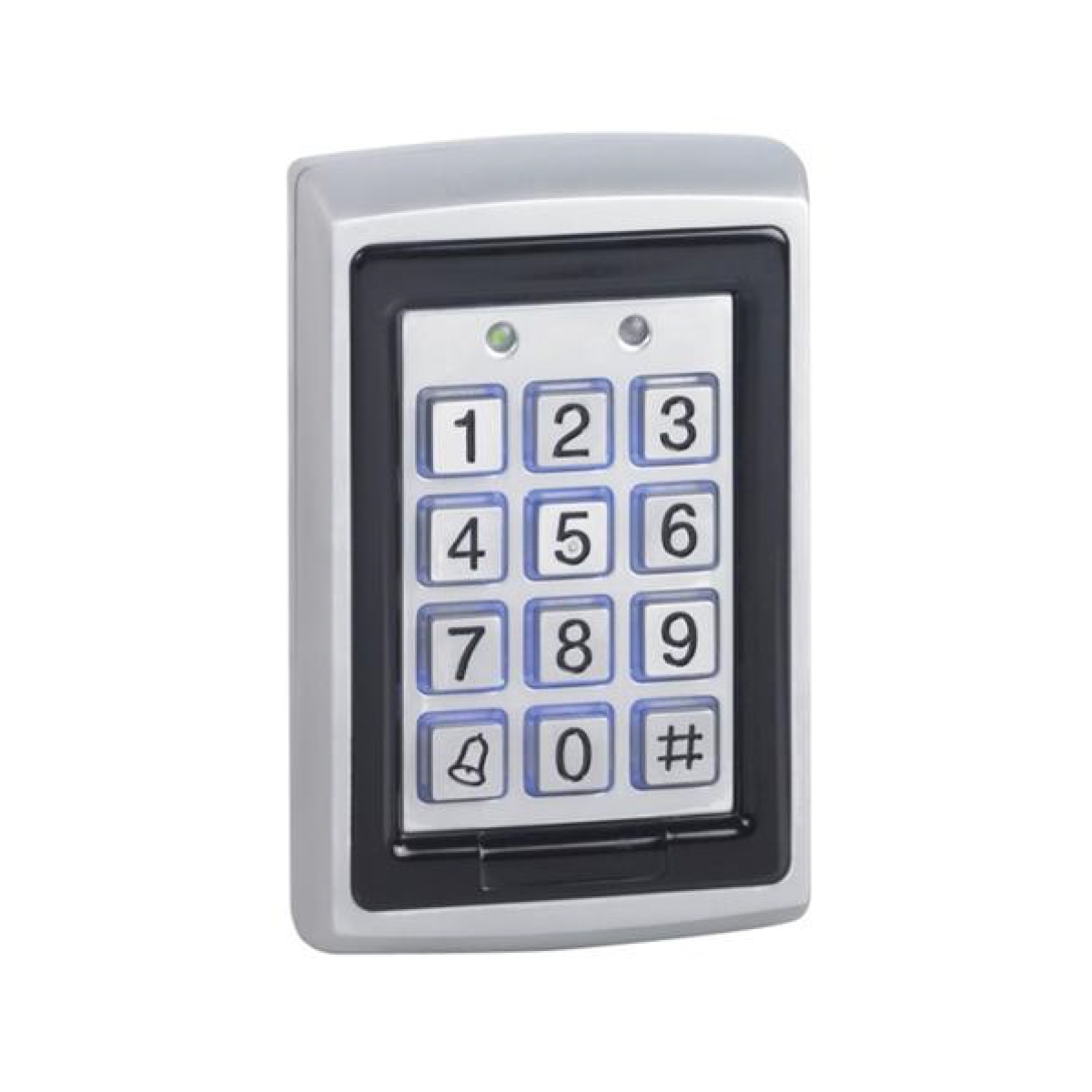

DG500 Standalone digital keypad & prox kit

Product Code: DG500

This standalone keypad has a built-in proximity reader, enabling entry via PIN-codes or cards/fobs. Up to 500 users can be enrolled and assigned to two programmable output relays. Its robust metal casing gives a high degree of vandal resistance, and includes a tamper sensor. Variable open time and latching option. Ideal for offices, shops, clubs, etc.

View more
inc VAT

Related Products (1)

inc VAT

ADDITIONAL INFORMATION

Features:

• Up to 500 user PINs, cards/fobs
• Built-in proximity reader
• 2 programmable relays.
• Selectable open-time (1 to 99 seconds)
• Latching mode (on aux relay only)
• Vandal resistant
• Tamper sensor
• Illuminated keypad (blue)
• LED status indication
• Button press ‘beep’ confirmation
• Cast alloy case (stainless steel colour)
• Card and PIN mode (more secure)


SPECIFICATION

Technical:

• Input voltage: 12Vdc
• Current draw: 130mA @ 12V,
• Relays: COM, NO, NC (2A max)
• Dims: 120mm(H) x 76mm(W) x 27mm(D)
• Proximity: EM format, 26 bit / 125kHz




This kit contains:
