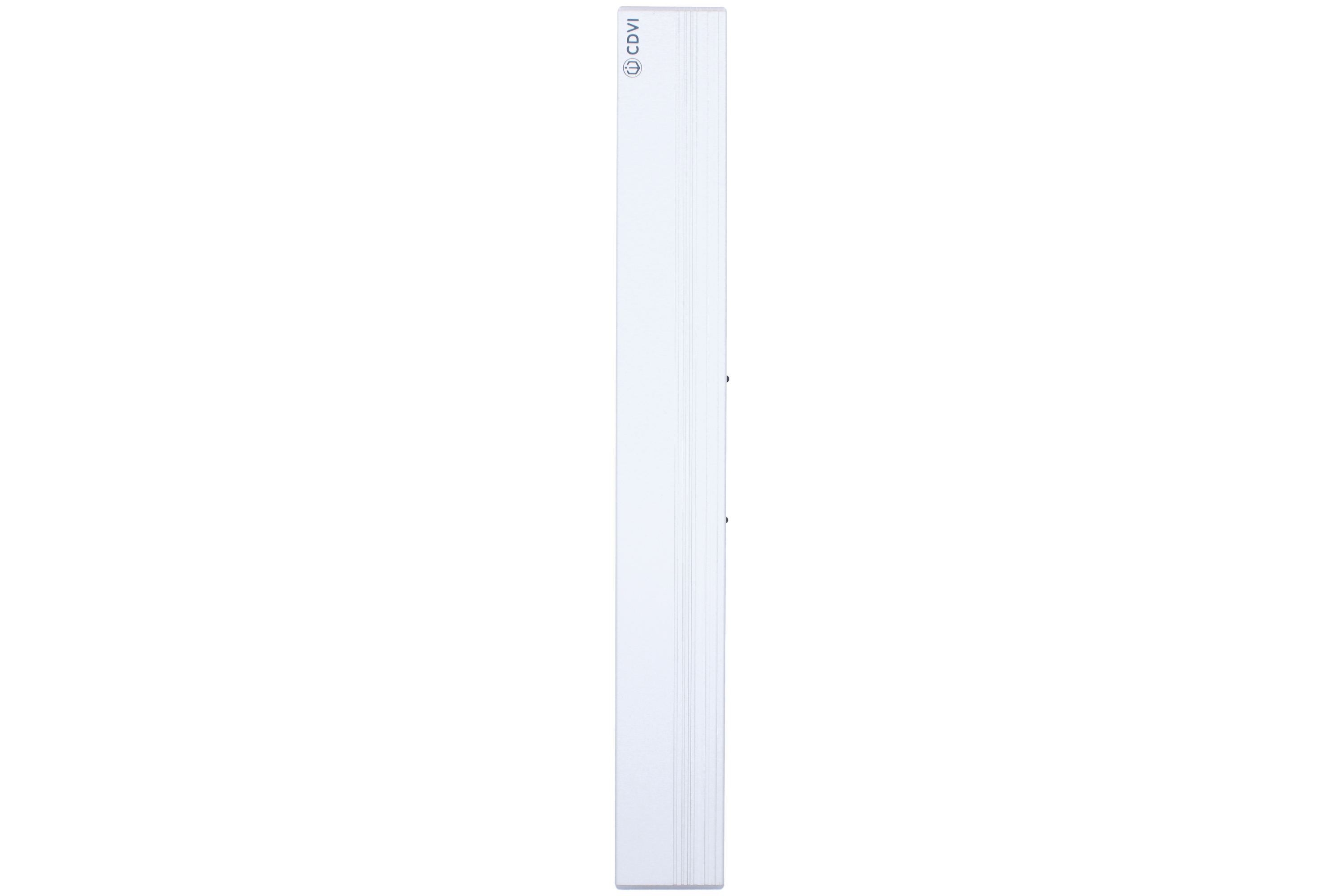

CDVI SD500M double mini 500kg magnetic lock, monitored
Product Code: SD500M

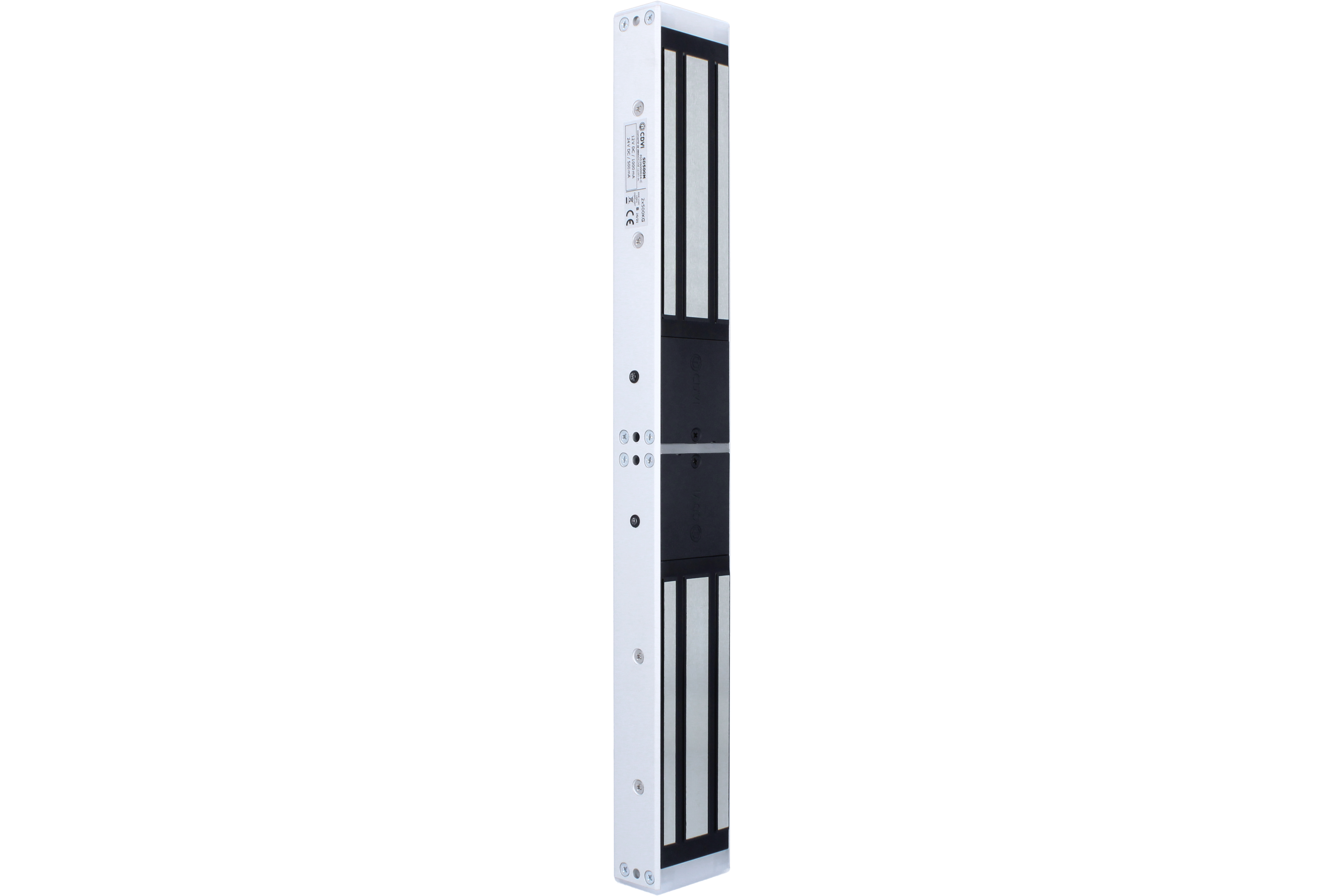

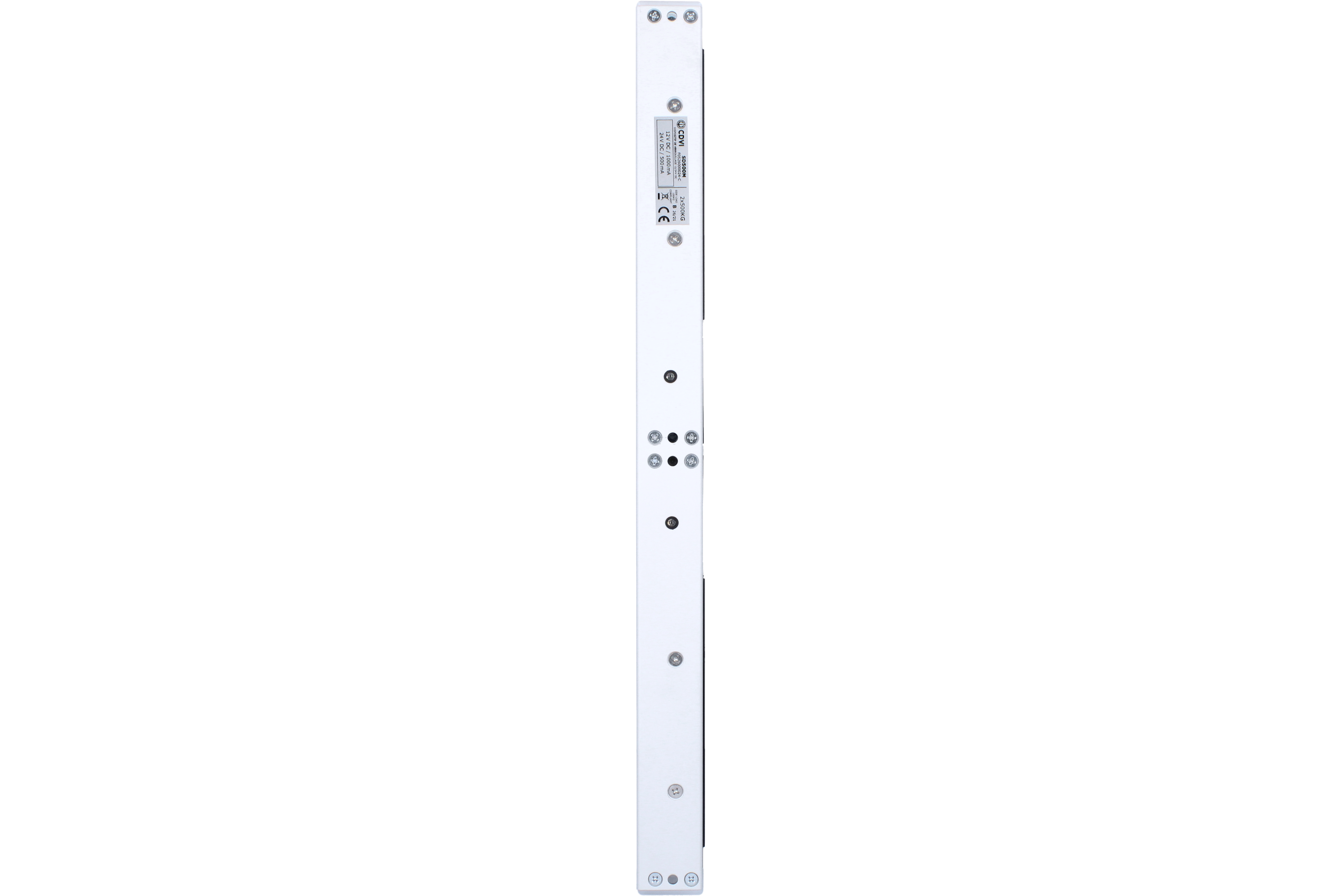

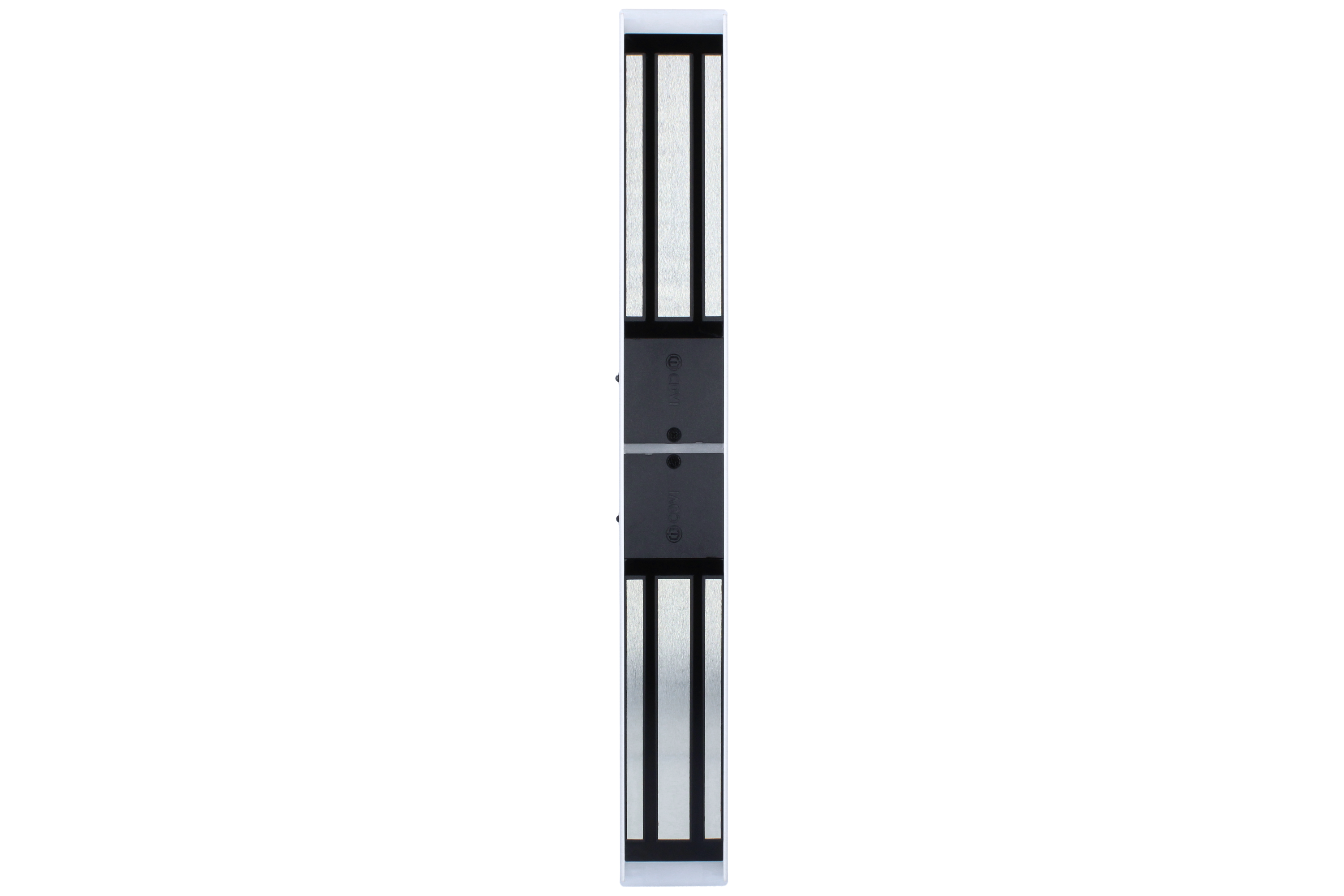

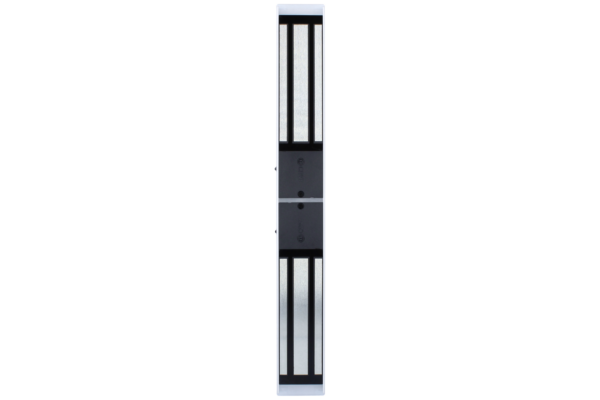

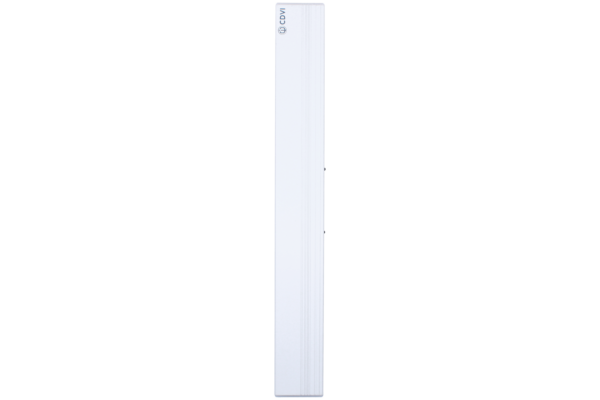

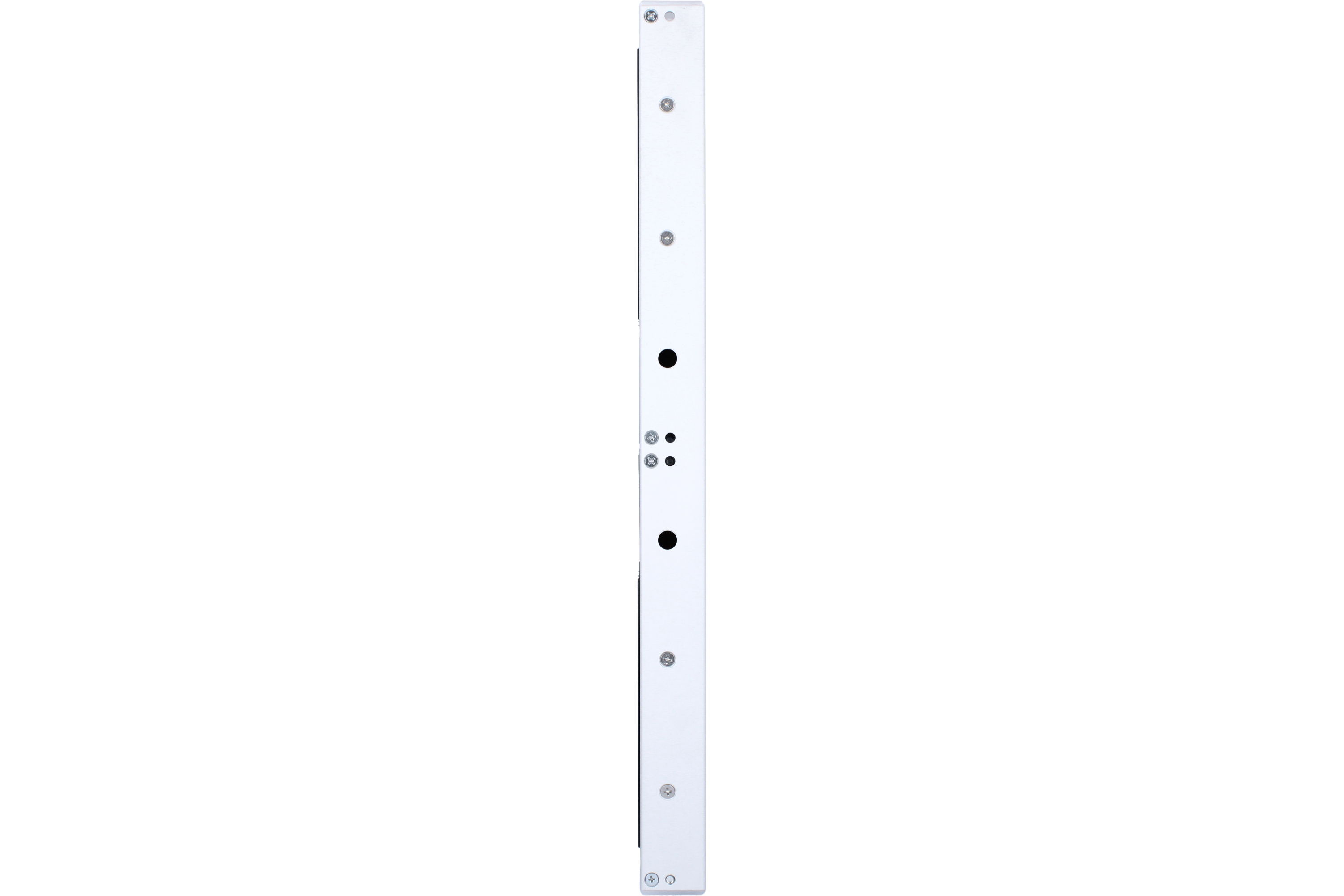

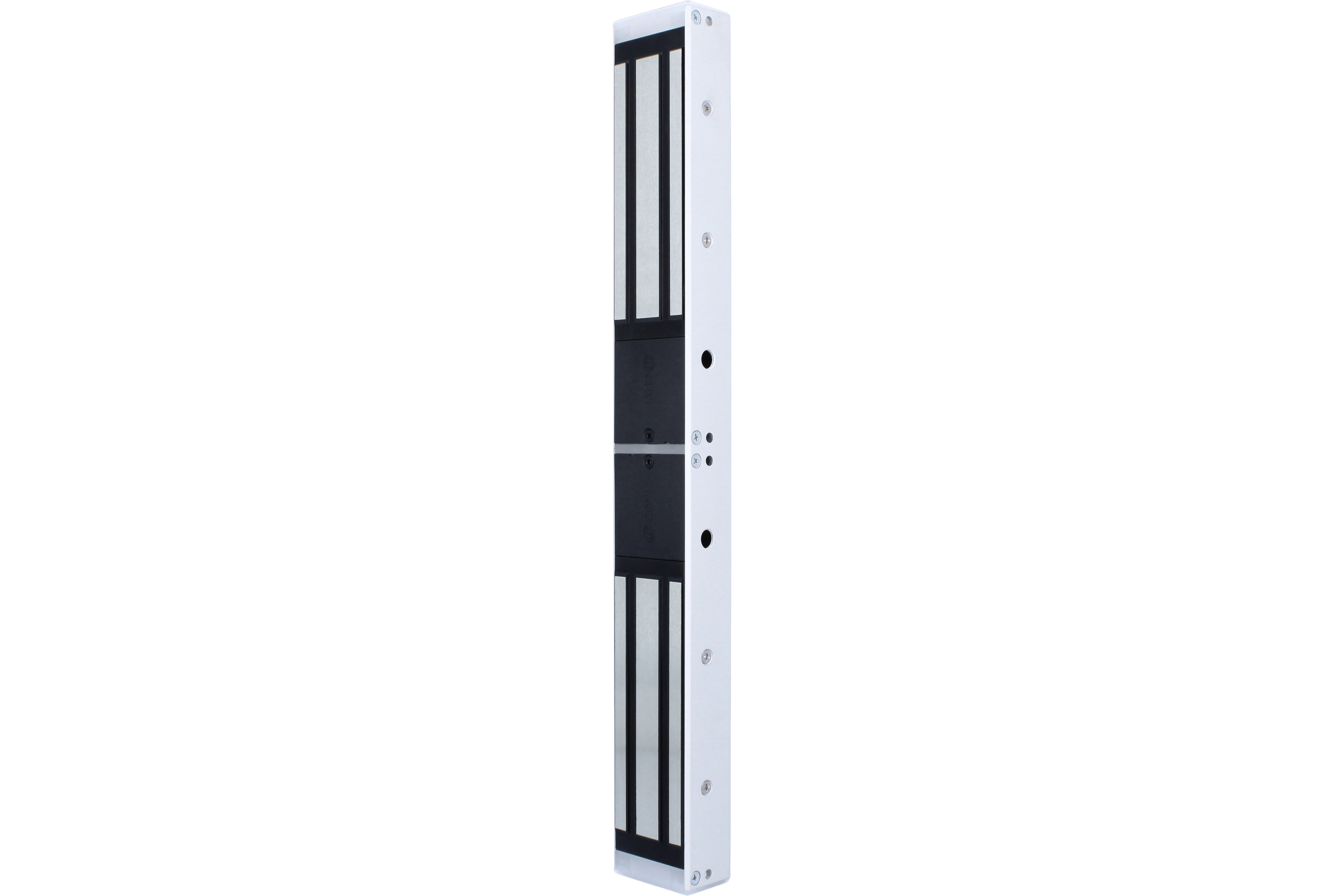

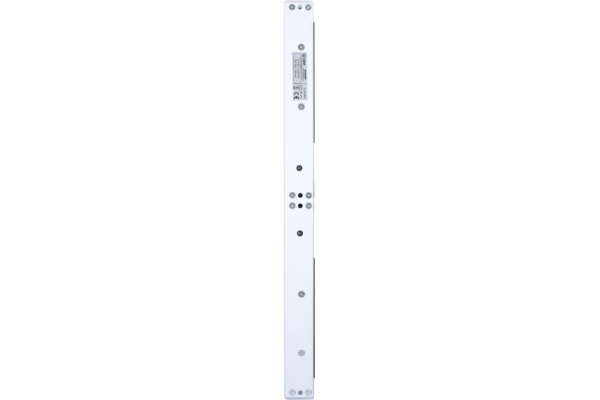

The SD500M is a monitored surface double maglock with a holding force of up to 500kg on each side.
**Two mounting brackets required for double magnetic locks
View more
Rated 4.8/5 on Google based on 130+ reviews
Door and Hardware Federation Assured
Related Products (1)
CDVI SD300M double mini 300kg magnetic lock, monitored
Product
Code: SD300M
inc VAT
ADDITIONAL INFORMATION
Not only is the SD500M part of an extansive range of electromagnetic locks manufactured by CDVI, but it is also part of our premium range, offering high quality and high performance locking with exceptional features to enhance your installation.
Each magnet is supplied in a professional packaging for ease of identification. Each package includes security “catch” ropes to prevent the magnetic lock from falling, ensuring the locks can be mounted safely without risk of injury.
- Double magnet
- 500kg per side
- Monitored with LED indication
- Rounded edges & safety ropes
- CDVI premium range
SPECIFICATION
Technical:
- Holding force: 2 x 500kg
- Monitoring: lock status - COM, NO, NC
- Voltage: 12/24Vdc
- Current: @12Vdc = 1A (500mA per side), @24Vdc = 500mA (250mA per side)
- Dimensions: 532 x 66 x 40mm
- IP42
This kit contains:
