4830 Cb

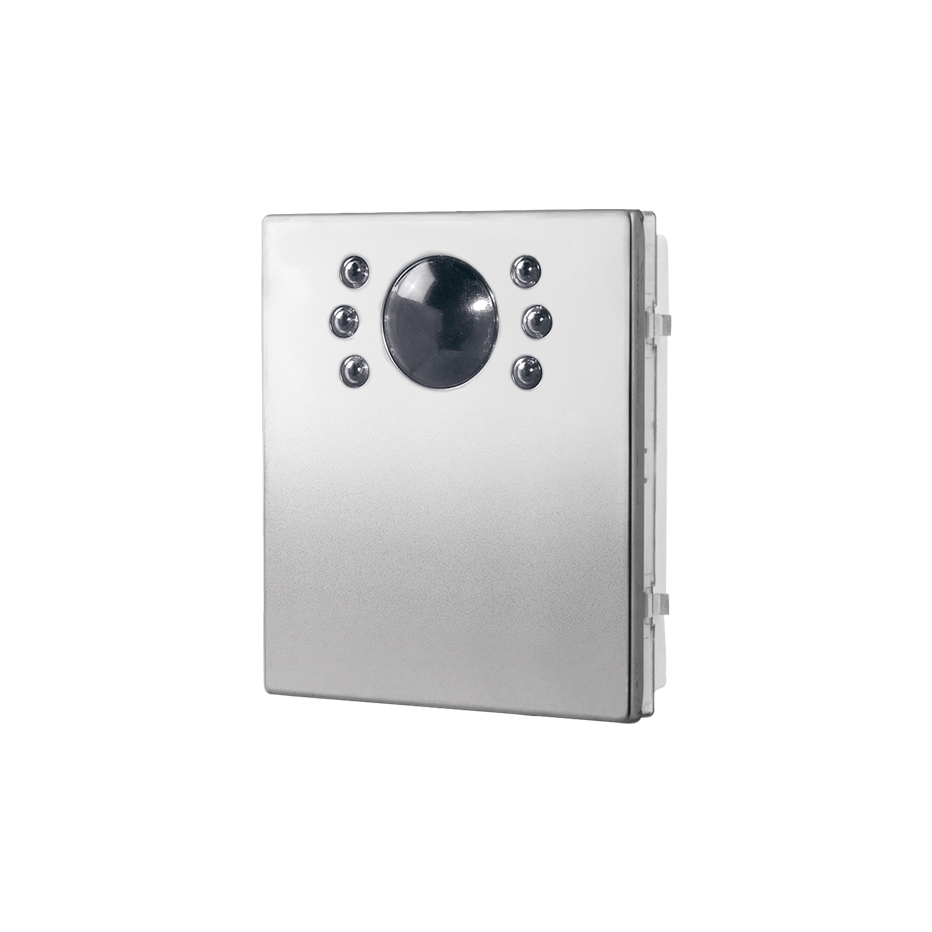

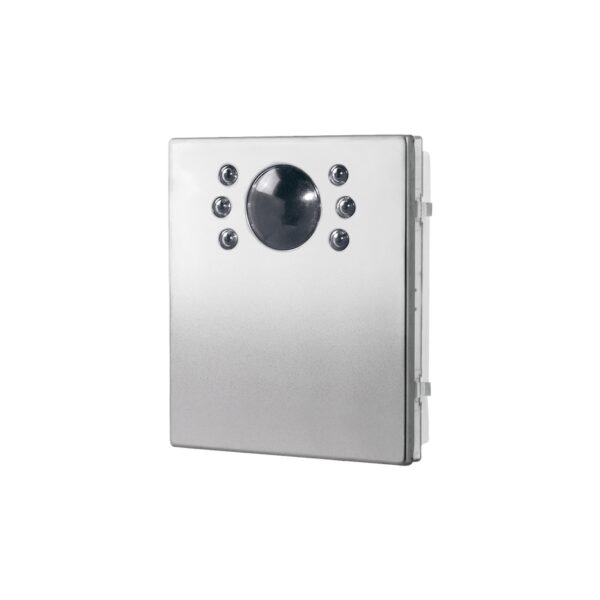

Videx 4330N/C/A colour camera unit with aluminium finish

Product Code: 4330N/C/A

VX2300 series module.

Dimensions: 103(W) x 120(H) x 30(D) mm

View more
inc VAT

ADDITIONAL INFORMATION

These 4000 Series modules are equipped with a colour day/night CCD camera with auto iris lens, complete with 6 infra-red LEDs for illumination. The camera has vertical and horizontal adjustment (10 degrees). The unit can be configured to work on systems with coax video signals or on systems using balanced video signals (non-coax) by setting video mode with the use of jumpers. Modules contain a heating element to prevent the camera lens misting.

Usually camera modules are combined with speaker modules in a 4000 series housing frame. The standard front plate is stainless steel (/S), modules are also available in anodized aluminium (/a) or high brass (/HB).

A wide angle camera is also available by adding (/W) to the product code.

Features:

  • Colour CCD day / night camera
  • Wide angle camera available (/W)
  • Infra-red LED illumination
  • Vertical and horizontal adjustment (10 degrees)

SPECIFICATION

  • Camera - Colour auto focus
  • Illumination - Infra-red LED's x6
  • Camera angle adjust - 10 degrees ball joint
  • Input voltage - 14-24Vdc (4830/C & 4830/W/C)
  • input voltage - BUS voltage (4330N/C)
  • Output 4830/C: - Balanced or 1Vp-p video (selectable)
  • Output 4330N: - Directly connects to 4303N
  • Anti-mist system - Yes
